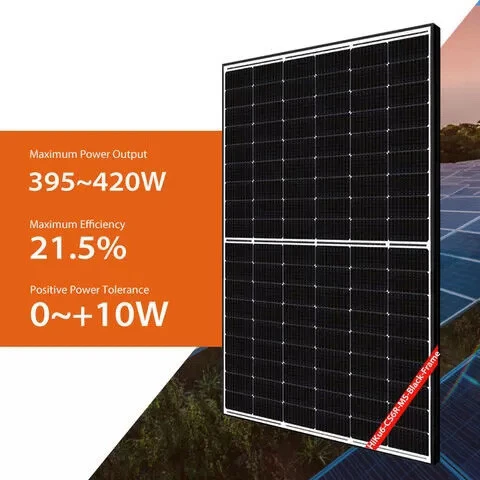

Model No.

CS6R-395MS

CS6R-400MS

CS6R-405MS

CS6R-410MS

CS6R-415MS

CS6R-420MS

Warranty

Product Warranty

25 Years

Power Warranty

25 Years of 84.8% Output Power

Electrical Data at STC

Maximum Power (Pmax)

395 Wp

400 Wp

405 Wp

410 Wp

415 Wp

420 Wp

Voltage at Maximum Power (Vmpp)

30.6 V

30.8 V

31 V

31.2 V

31.4 V

31.6 V

Current at Maximum Power (Impp)

12.91 A

12.99 A

13.07 A

13.15 A

13.23 A

13.31 A

Open Circuit Voltage (Voc)

36.6 V

36.8 V

37 V

37.02 V

37.4 V

37.6 V

Short Circuit Current (Isc)

13.77 A

13.85 A

13.93 A

14.01 A

14.09 A

14.17 A

Panel Efficiency

20.20%

20.50%

20.70%

21%

21.30%

21.50%

Power Tolerance (Positive)

2.50%

2.50%

2.50%

2.50%

2.50%

2.50%

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C

Electrical Data at NOCT

Maximum Power (Pmax)

296 Wp

300 Wp

304 Wp

307 Wp

311 Wp

315 Wp

Voltage at Maximum Power (Vmpp)

28.7 V

28.9 V

29.1 V

29.2 V

29.4 V

29.6 V

Current at Maximum Power (Impp)

10.33 A

10.39 A

10.45 A

10.52 A

10.58 A

10.65 A

Open Circuit Voltage (Voc)

34.6 V

34.8 V

35 V

35.1 V

35.3 V

35.5 V

Short Circuit Current (Isc)

11.09 A

11.15 A

11.21 A

11.28 A

11.34 A

11.41 A

Temperature

41±3 °C

Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

40~85 °C

Temperature Coefficient of Pmax

0.34 %/°C

Temperature Coefficient of Voc

0.26 %/°C

Temperature Coefficient of Isc

0.05 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

25 A

Material Data

Panel Dimension (H/W/D)

1722x1134x30 mm

Weight

21.3 kg

Cell Type

PERC

Cell Number

108

Glass Type

Anti-reflection Coating, Tempered

Glass Thickness

3.2 mm

Frame Type

Anodized Aluminium Alloy

Junction Box Diodes

3

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm2

Cable Length

410 mm
