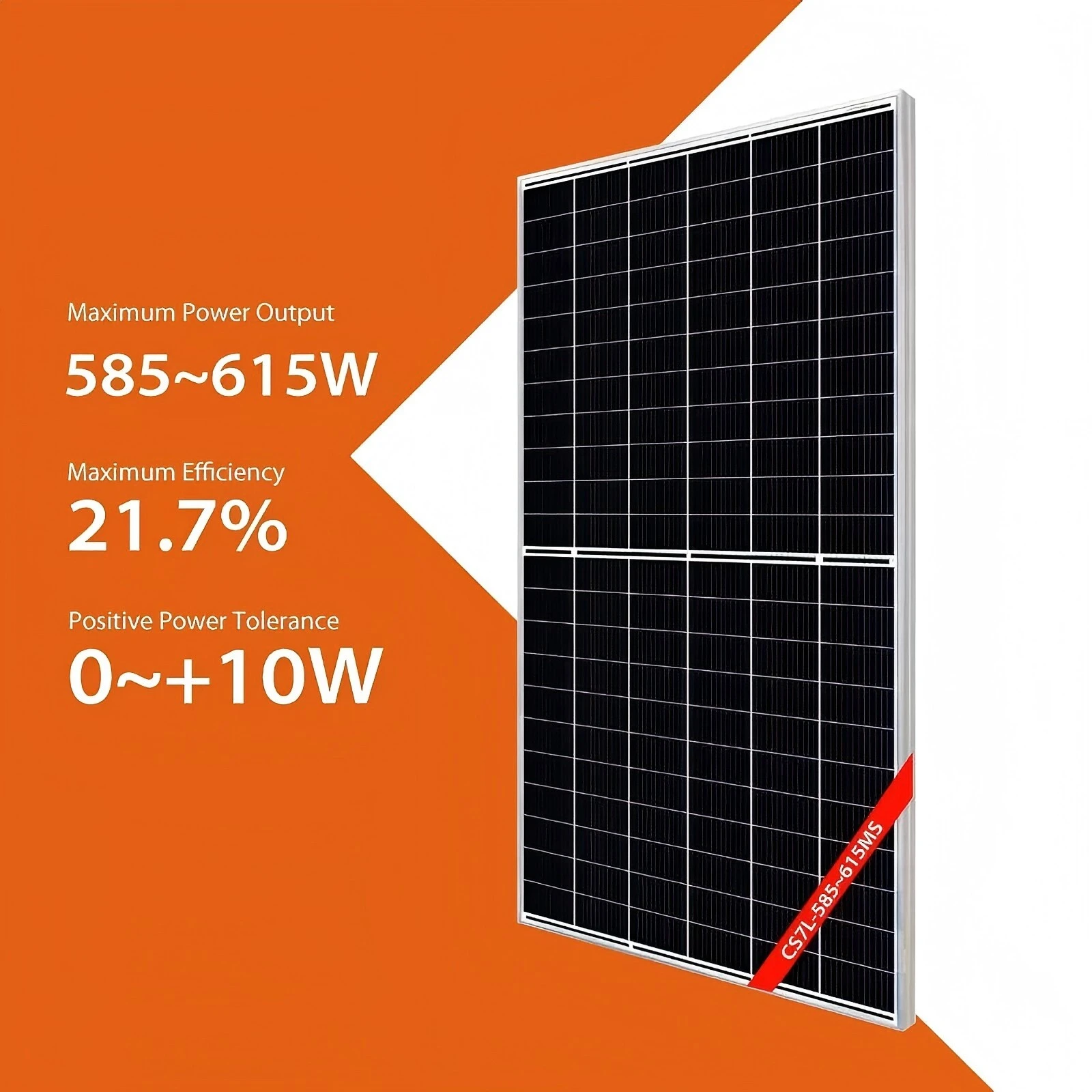

580W 585W Thin Film Silicon Photovoltaic Module 610W 615W Panel Solar Canadian Full Black
580W 585W Thin Film Silicon Photovoltaic Module 610W 615W Panel Solar Canadian Full Black
Brand Name:HiKu7-CS7L-MS
Cell Size:210mmx210mm
Panel Dimensions:2172x1303x35 Mm
Frame:Anodized Aluminum Alloy
Glass:Single Glass 3.2 Mm
Power Tolerance:0~+10 W
Maximum Rated Fuse Current:30 A
Panel Efficiency:21.70%
Inquiry Now
louise@longkesolar.com
86 15251428951
Previous page:615W 620W Canadian Solar Panel 625W 630W All Black Solar Panel High Efficiency
Next page:555W 560W Canadian Mono Solar Panels 565W 570W Canadian Monocrystalline Solar Panels

Product Details

Canadian 580W 585W 590W 595W 600W 605W 610W 615W China Warehouse Full Black Shingled Solar Panel Kits


In conclusion, the working principle of double-glass solar panels relies on the photovoltaic effect and their unique bifacial design to generate electricity from both direct and reflected sunlight. By incorporating features such as anti-reflective coatings, optimized installation angles, tracking systems, conductive metal contacts, bypass diodes, and safety measures, double-glass solar panels provide an efficient and reliable renewable energy solution for homeowners and businesses seeking a cleaner and more sustainable future.


Model No.

CS7L-580MS-R

CS7L-585MS-R

CS7L-590MS-R

CS7L-595MS-R

CS7L-600MS-R

CS7L-605MS-R

CS7L-610MS-R

Warranty


Product Warranty

12 Years

Power Warranty

25 Years of 84.8% Output Power

Electrical Data at STC


Maximum Power (Pmax)

580 Wp

585 Wp

590 Wp

595 Wp

600 Wp

605 Wp

610 Wp

Voltage at Maximum Power (Vmpp)

34.1 V

34.3 V

34.5 V

34.7 V

34.9 V

35.1 V

35.3 V

Current at Maximum Power (Impp)

17.02 A

17.06 A

17.11 A

17.15 A

17.2 A

17.25 A

17.29 A

Open Circuit Voltage (Voc)

40.5 V

40.7 V

40.9 V

41.1 V

41.3 V

41.5 V

41.7 V

Short Circuit Current (Isc)

18.27 A

18.32 A

18.37 A

18.42 A

18.47 A

18.52 A

18.57 A

Panel Efficiency

20.50%

20.70%

20.80%

21%

21.20%

21.40%

21.60%

Power Tolerance (Positive)

2%

2%

2%

2%

2%

2%

2%


Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C

Electrical Data at NOCT


Maximum Power (Pmax)

435 Wp

439 Wp

442 Wp

446 Wp

450 Wp

454 Wp

457 Wp

Voltage at Maximum Power (Vmpp)

32 V

32.2 V

32.3 V

32.5 V

32.7 V

32.9 V

33.1 V

Current at Maximum Power (Impp)

13.6 A

13.62 A

13.7 A

13.73 A

13.77 A

13.8 A

13.93 A

Open Circuit Voltage (Voc)

38.3 V

38.5 V

38.7 V

38.8 V

39 V

39.2 V

39.4 V

Short Circuit Current (Isc)

14.73 A

14.77 A

14.8 A

14.85 A

14.89 A

14.93 A

14.97 A

Temperature

41±3 °C


Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings


Operating Temperature Range

40~85 °C

Temperature Coefficient of Pmax

0.34 %/°C

Temperature Coefficient of Voc

0.26 %/°C

Temperature Coefficient of Isc

0.05 %/°C

Maximum Ratings


Maximum System Voltage

1500 V

Series Fuse Rating

30 A

Material Data


Panel Dimension (H/W/D)

2172x1303x35 mm

Weight

31 kg

Cell Type

PERC

Cell Number

120

Glass Type

Anti-reflection Coating, Tempered

Glass Thickness

3.2 mm

Frame Type

Anodized Aluminium Alloy

Junction Box Diodes

3

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

6 mm2

Cable Length

460 mm
