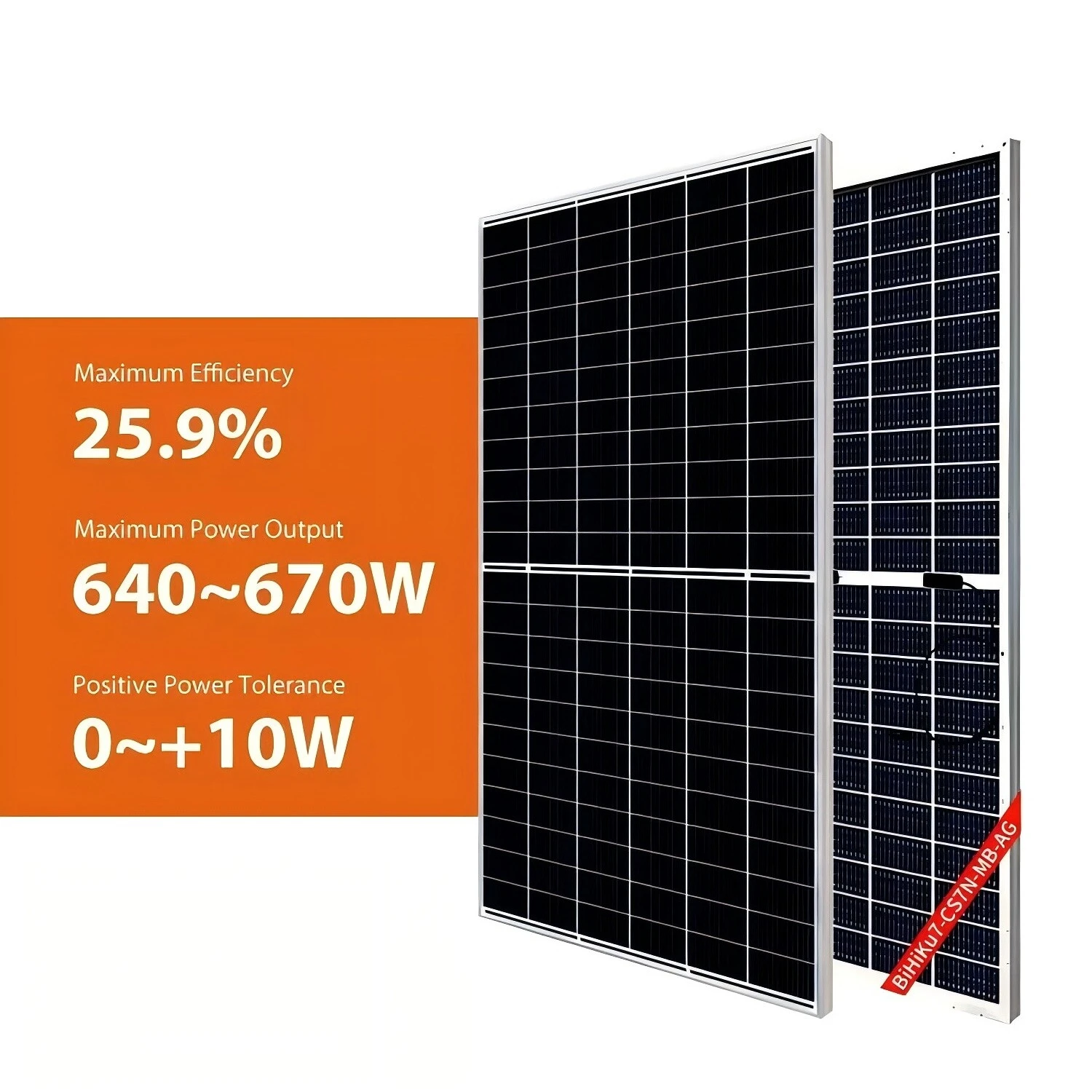

640w 645w Canadian Solar All Black 665w 670w Warehouse Half Cell Solar Panel
640w 645w Canadian Solar All Black 665w 670w Warehouse Half Cell Solar Panel
Brand Name:BiHiKu7-CS7N-MB-AG
Cell Size:210mmx210mm
Panel Dimensions:2384x1303x33 Mm
Front Glass:2.0 Mm Heat Strengthened Glass With Anti-reflective Coating
Cable:4.0 Mm²(IEC),12 AWG(UL)
J-Box:IP68,3 Bypass Diodes
Back Glass:2.0 Mm Heat Strengthened Glass
Panel Efficiency:25.90%
Type:PERC, Half Cell, Bifacial, Double-glass
Cable Length(Including Onnector):460 Mm (18.1 In)(+)/340 Mm(13.4 In)(-) Or Customized Length*
Inquiry Now
louise@longkesolar.com
86 15251428951
Previous page:Already the first

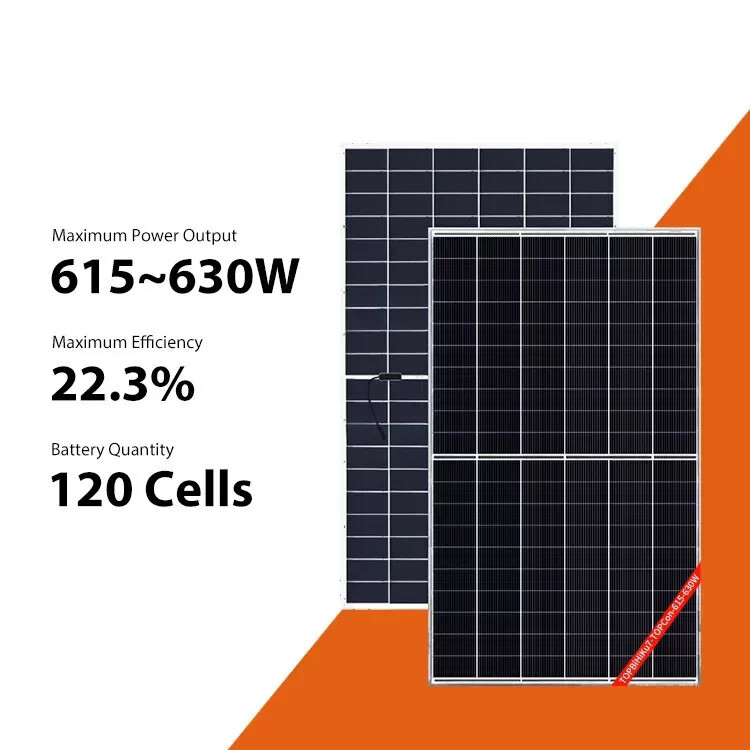

Next page:615W 620W Canadian Solar Panel 625W 630W All Black Solar Panel High Efficiency

Product Details

Canadian 640w 645w 650w 655w 660w 665w 670w Warehouse Solar Panel Black Half Cell Mono Solar Panel


Our solar PV modules are designed to suit various applications, including residential, commercial, and utility-scale installations. Whether you're a homeowner looking to reduce your energy costs or a business aiming to achieve sustainability goals, our solar PV modules offer the perfect solution. Our product range includes both monocrystalline and polycrystalline solar PV modules, each with their unique advantages and characteristics. Browse through our diverse product offerings and find the solar PV module that best fits your specific requirements and preferences.


Model No.

CS7L-640MB-AG

CS7L-645MB-AG

CS7N-650MB-AG

CS7N-655MB-AG

CS7N-660MB-AG

CS7N-665MB-AG

CS7N-670MB-AG

Warranty


Product Warranty

12 Years

Power Warranty

30 Years of 84.95% Output Power

Electrical Data at STC


Maximum Power (Pmax)

640 Wp

645 Wp

650 Wp

655 Wp

660 Wp

665 Wp

670 Wp

Voltage at Maximum Power (Vmpp)

37.5 V

37.7 V

37.9 V

38.1 V

38.3 V

38.5 V

38.7 V

Current at Maximum Power (Impp)

17.07 A

17.11 A

17.16 A

17.2 A

17.24 A

17.28 A

17.32 A

Open Circuit Voltage (Voc)

44.6 V

44.8 V

45 V

45.2 V

45.4 V

45.6 V

45.8 V

Short Circuit Current (Isc)

18.31 A

18.35 A

18.39 A

18.43 A

18.47 A

18.51 A

18.55 A

Panel Efficiency

20.60%

20.80%

20.90%

21.10%

21.20%

21.40%

21.60%

Power Tolerance (Positive)

1.50%

1.50%

1.50%

1.50%

1.50%

1.50%

1.50%


Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C

Electrical Data at NOCT


Maximum Power (Pmax)

480 Wp

484 Wp

487 Wp

491 Wp

495 Wp

499 Wp

502 Wp

Voltage at Maximum Power (Vmpp)

35.2 V

35.3 V

35.5 V

35.7 V

35.9 V

36.1 V

36.3 V

Current at Maximum Power (Impp)

13.64 A

13.72 A

13.74 A

13.76 A

13.79 A

13.83 A

13.85 A

Open Circuit Voltage (Voc)

42.2 V

42.3 V

42.5 V

42.7 V

42.9 V

43.1 V

43.3 V

Short Circuit Current (Isc)

14.77 A

14.8 A

14.83 A

14.86 A

14.89 A

14.93 A

14.96 A

Temperature

41±3 °C


Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings


Operating Temperature Range

40~85 °C

Temperature Coefficient of Pmax

0.34 %/°C

Temperature Coefficient of Voc

0.26 %/°C

Temperature Coefficient of Isc

0.05 %/°C

Maximum Ratings


Maximum System Voltage

1500 V

Series Fuse Rating

35 A

Material Data


Panel Dimension (H/W/D)

2384x1303x35 mm

Weight

37.9 kg

Cell Type

Bifacial, PERC

Cell Number

132

Glass Type

Anti-reflection Coating

Glass Thickness

2 mm

Frame Type

Anodized Aluminium Alloy

Junction Box Diodes

3

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm2

Cable Length

460 mm
